2/3″ 3 Megapixel Fixed-Focal Machine Vision Lens f=8mm
f=8mm F/1.4 (Model: JHF8M-MP)
VELA
SPACECOM
■Fixed focal lenses compatible with 2/3″ 3 Megapixel camera
■Low image distortion,ideal for FA/image processing applications
■It provides a Lock Screw fitted as the standard equipment in Focus and Iris.
SPECIFICATIONS
Model No. JHF8M-MP
Focal Length 8mm
Maximum Relative Aperture 1 : 1.4
Aperture Range F1.4 – Close
Angle of View
(Horizontal
× Vertical)		 1/3″ 32.4° × 24.5°
1/2″ 42.6° × 32.4°
2/3″ 56.7° × 43.8°
Image Size 8.8mm×6.6mm(Φ11mm)
Minimum Object Distance 0.1m (From Front Vertex)
Resolution –
Optical Distortion -4.45% (at near) , -2.36% (at far)
TV Distortion -1.24% (at near) , 0.48% (at far)
Back Focus 10.7mm (in Air)
Flange back 17.526mm
Operation Focus:Manual , Iris:Manual
Operating Temprature -10℃ – +50℃
Mount C-Mount
Filter Size 35.5mmP0.5

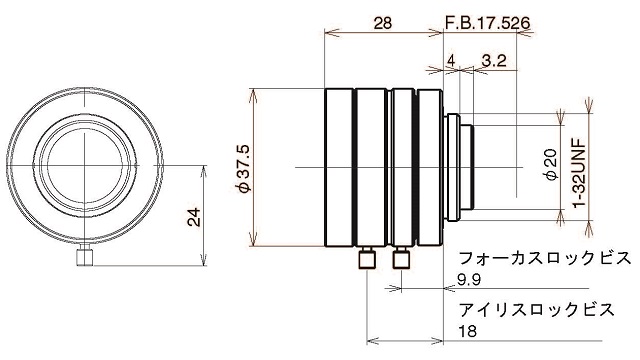

Size Φ37.5 × 28mm
Weight 80g
