4/3″Megapixel Fixed-Focal Machine Vision lens
43F2408M-MP/43F2409M-MP C
SPACECOM
■For large format 4/3″ megapixel applications
■M42mm-Mount type/C-Mount type
■Produces high brightness in both the center and corners.
■The floating mechanism system improve the close-focus performance.
■Minimum Object Distance:150mm
■Focus/iris locking mechanism

■ 4/3″Megapixel Fixed-Focal Machine Vision lens
SPECIFICATIONS
Model No. 43F2408M-MP 43F2409M-MP C
Focal Length 24mm
Maximum Relative Aperture 1 : 0.8 1 : 0.9
Aperture Range F0.8 – 16 F0.9sp;– 16
Angle of View(4/3″) 39.3° × 30.8°(49.0°)
Image Size 17.3 × 13.5 mm (Φ21.9mm)
Minimum Object Distance 0.15m (S.N. 0.1m)
Back Focus 20.08(in Air) 19.36(in Air)
Flange back 19.53mm 17.526mm
Operation Focus:Manual , Iris:Manual
Operating Temprature -10℃ – 50℃
Mount M42 P1.0 C-Mount
Filter Size M67mm P0.75
Size Φ73.6 × 102.82mm Φ73.6 × 104.82mm
Weight approx.890g approx.880g

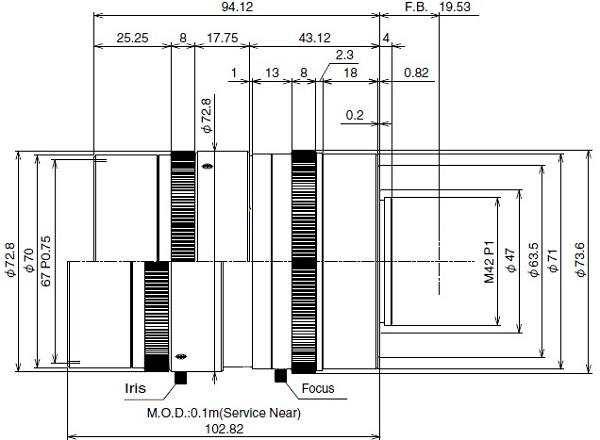

43F2408M-MP

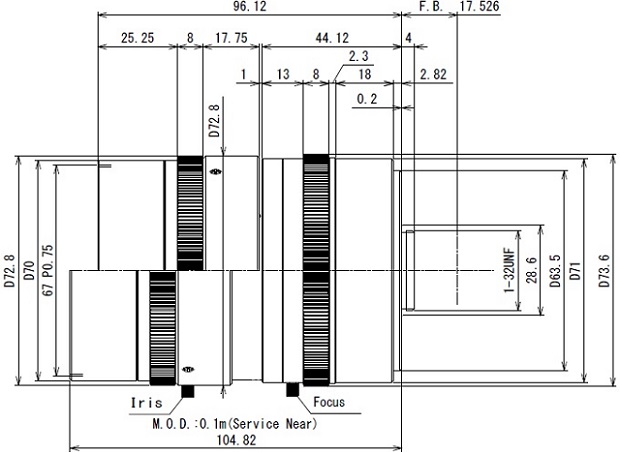

43F2409M-MP C
