2/3″ 3 Megapixel Fixed-Focal Machine Vision Lenses
f=35mm F/1.4 (Model: JHF35M-MP)
VELA
SPACECOM
■Fixed focal lenses compatible with 2/3″ 3 Megapixel camera
■Low image distortion,ideal for FA/image processing applications
■It provides a Lock Screw fitted as the standard equipment in Focus and Iris.
SPECIFICATIONS
Model No. JHF35M-MP2
Focal Length 35mm
Maximum Relative Aperture 1 : 1.4
Aperture Range F1.4 – 22
Angle of View
(Horizontal
× Vertical)		 1/3″ 7.8° × 5.9°
1/2″ 10.4° × 7.8°
2/3″ 14.3° × 10.8°
Image Size 8.8mm×6.6mm(Φ11mm)
Minimum Object Distance 0.25m (From Front Vertex)
Resolution –
Optical Distortion -0.04% (at near) , 0.07% (at far)
TV Distortion -0.01% (at near) , 0.03% (at far)
Back Focus 14.027mm (in Air)
Flange back 17.526mm
Operation Focus:Manual , Iris:Manual
Operating Temprature -10℃ – +50℃
Mount C-Mount
Filter Size 35.5mmP0.5

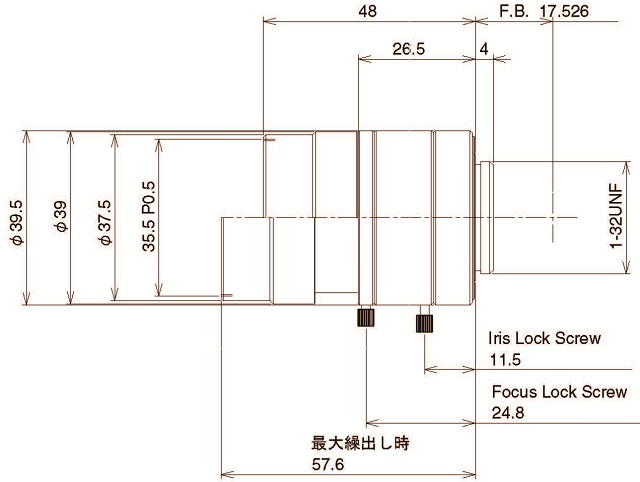

Size Φ39.5 × 48mm
Weight 145g
