2/3″ 3 Megapixel Fixed-Focal Machine Vision Lenses
f=25mm F/1.4 (Model: JHF25M-MP)
VELA
SPACECOM
■Fixed focal lenses compatible with 2/3″ 3 Megapixel camera
■Low image distortion,ideal for FA/image processing applications
■It provides a Lock Screw fitted as the standard equipment in Focus and Iris.
SPECIFICATIONS
Model No. JHF25M-MP
Focal Length 25mm
Maximum Relative Aperture 1 : 1.4
Aperture Range F1.4 – 22
Angle of View
(Horizontal
× Vertical)		 1/3″ 11.0° × 8.2°
1/2″ 14.6° × 11.0°
2/3″ 20.0° × 15.0°
Image Size 8.8mm×6.6mm(Φ11mm)
Minimum Object Distance 0.2m (From Front Vertex)
Resolution –
Optical Distortion -0.07% (at near) , 0.21% (at far)
TV Distortion 0.02% (at near) , 0.11% (at far)
Back Focus 14.01mm (in Air)
Flange back 17.526mm
Operation Focus:Manual , Iris:Manual
Operating Temprature -10℃ – +50℃
Mount C-Mount
Filter Size 35.5mmP0.5

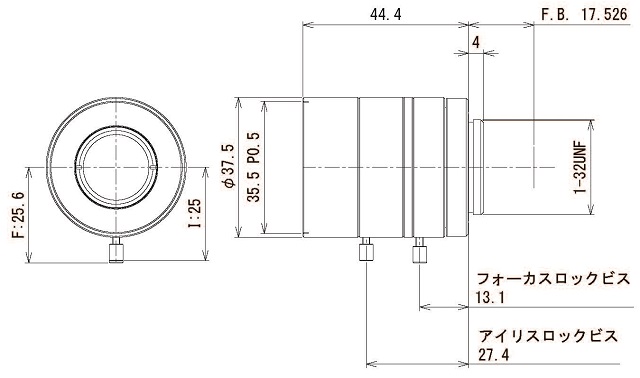

Size Φ37.6 × 44.4mm
Weight 106g
