2/3″ 3 Megapixel Fixed-Focal Machine Vision Lenses
f=12mm F/1.8 (Model: JHF12M-MP2)
VELA
SPACECOM
■Fixed focal lenses compatible with 2/3″ 3 Megapixel camera
■Low image distortion,ideal for FA/image processing applications
■It provides a Lock Screw fitted as the standard equipment in Focus and Iris.
SPECIFICATIONS
Model No. JHF12M-MP2
Focal Length 12mm
Maximum Relative Aperture 1 : 1.8
Aperture Range F1.8 – 22
Angle of View
(Horizontal
× Vertical)		 1/3″ 22.6° × 17.1°
1/2″ 29.9° × 22.6°
2/3″ 40.3° × 30.8°
Image Size 8.8mm×6.6mm(Φ11mm)
Minimum Object Distance 0.2m (From Front Vertex)
Resolution –
Optical Distortion -0.98% (at near) , -0.37% (at far)
TV Distortion -0.22% (at near) , 0.10% (at far)
Back Focus 14.00mm (in Air)
Flange back 17.526mm
Operation Focus:Manual , Iris:Manual
Operating Temprature -10℃ – +50℃
Mount C-Mount
Filter Size 35.5mmP0.5

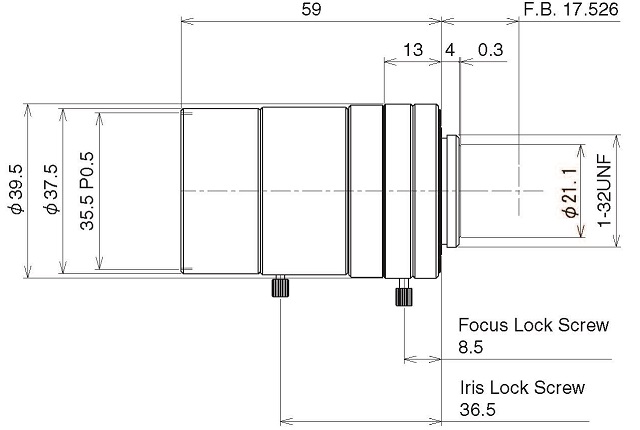

Size Φ39.5 × 59mm
Weight 160g
