Mega-Pixel Vari-Focal Lens P Iris
f=4-13mm (Model: M118VP413IR / M118VP413IRCS)
TAMRON

M118VP413IR
M118VP413IRCS		 Tamron makes a series of mega-pixel compatible vari-focal lenses that derive the maximum performance from mega-pixel high-resolution cameras. Tamron's mega-pixel compatible Vari-Focal lenses incorporating advanced optical systems ensure high resolution and high contrast performance over the entire image field, from the center to the periphery. Also, these lenses are the most suitable for the image cut-out function of IP cameras.

SPECIFICATIONS
Model No. M118VP413IR M118VP413IRCS
Imager Size 1/1.8″
Focal Length 4–13mm
Mount C-Mount CS-Mount
Aperture Range F1.5–Close
Focusing Range 0.3m–∞
Angle of View
(Horizontal
× Vertical)		 1/1.8″ WIDE 105.4°× 77.6°
TELE 33.0°×24.8°
1/2″ WIDE 91.7°×67.9°
TELE 29.0°×21.8°
1/3″ WIDE 67.9°×50.6°
TELE 21.8°×16.3°
Operation Focus Manual with Lock
Zoom Manual with Lock
Iris P Iris
Excitation Bi-polar Type
Back Focus(in Air) 15.235mm
Filter Size Visible Light–Infrared Light
Operating Voltage 3–5v
Weight 167g 128g
Operating Temperature -20℃+60℃

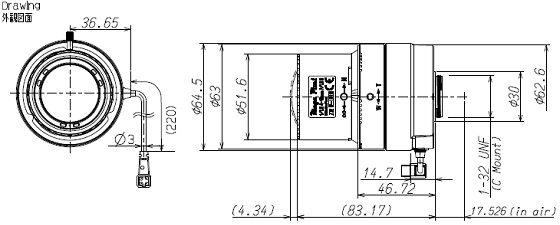

M118VP413IR

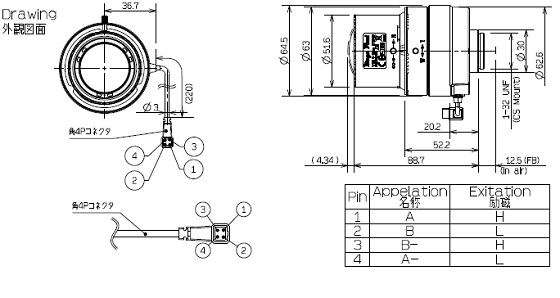

M118VP413IRCS
