Flat-Field NIR(Near-IR) Mega-Pixel Lenses
Mega-Pixel Vari-Focal Lens
f=4-13mm (Model: M118VM413IR / M118VM413IRCS)
TAMRON

M118VM413IR
M118VM413IRCS
 Tamron makes a series of mega-pixel compatible vari-focal lenses that derive the maximum performance from mega-pixel high-resolution cameras. Tamron's mega-pixel compatible Vari-Focal lenses incorporating advanced optical systems ensure high resolution and high contrast performance over the entire image field, from the center to the periphery. Also, these lenses are the most suitable for the image cut-out function of IP cameras.

SPECIFICATIONS
Model No. M118VM413IR M118VM413IRCS
Imager Size 1/1.8″
Focal Length 4–13mm
Mount C-Mount CS-Mount
Aperture Range F1.5–Close
Focusing Range 0.3m–∞
Angle of View
(Horizontal
× Vertical)		 1/1.8″ WIDE 105.4°× 77.6°
TELE 33.0°×24.8°
1/2″ WIDE 91.7°×67.9°
TELE 29.0°×21.8°
1/3″ WIDE 67.9°×50.6°
TELE 21.8°×16.3°
Operation Focus Manual with Lock
Zoom Manual with Lock
Iris Manual with Lock
Filter Size –
Back Focus(in Air) 15.235mm
Wave Size Visible Light–Infrared Light
Weight 167g 172g
Operating Temperature -20℃+60℃

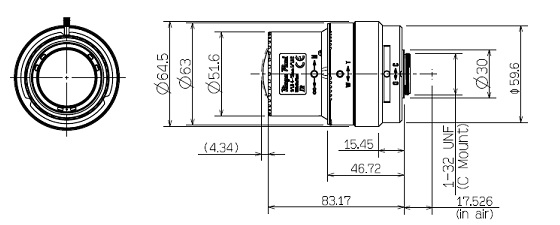

M118VM413IR

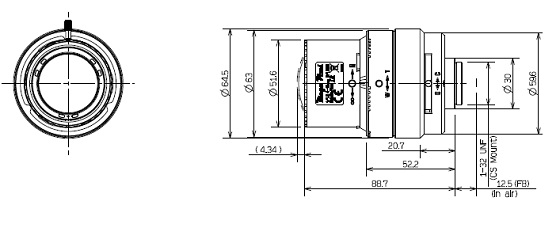

M118VM413IRCS
