2/3″ 5 Megapixel Fixed focal lens f=8mm
f=8mm F/2.8 (Model:JHF8M-5MP)
PYXIS
SPACECOM
■Fixed focal lenses compatible with 2/3″ 5 Megapixel camera
■High transmission maintains from visible ray to near infrared region by AR mutliband coatig
■The Iris adjustment is accurate and easy to handle.
■Low image distortion,ideal for FA/image processing applications
■It provides a Lock Screw fitted as the standard equipment in Focus and Iris.
SPECIFICATIONS
Model No. JHF8M-5MP
Focal Length 8mm
Maximum Relative Aperture 1 : 2.8
Aperture Range F2.8 – 22
Angle of View
(Horizontal
× Vertical)		 1/3″ 33.4° × 25.2°
1/2″ 43.7° × 33.4°
2/3″ 57.9° × 45.0°
Image Size 8.8mm×6.6mm(Φ11mm)
Minimum Object Distance 0.1m (From Front Vertex)
Resolution 3.45μm
Optical Distortion -2.23% (at near) , -1.49% (at far)
TV Distortion -0.44% (at near) , 0.08% (at far)
Back Focus 12.40mm (in Air)
Flange back 17.526mm
Operation Focus:Manual , Iris:Manual
Operating Temprature -10℃ – +50℃
Mount C-Mount
Filter Size 49mmP0.75

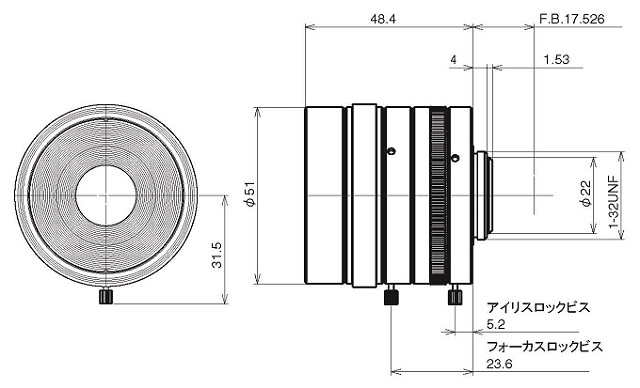

Size Φ51 × 48mm
Weight approx.200g
