2/3″ 5 Megapixel Fixed focal lens f=25mm
f=25mm F/1.4 (Model:JHF25M-5MP)
PYXIS
SPACECOM
■Fixed focal lenses compatible with 2/3″ 5 Megapixel camera
■High transmission maintains from visible ray to near infrared region by AR mutliband coatig
■The Iris adjustment is accurate and easy to handle.
■Low image distortion,ideal for FA/image processing applications
■It provides a Lock Screw fitted as the standard equipment in Focus and Iris.
SPECIFICATIONS
Model No. JHF25M-5MP
Focal Length 25mm
Maximum Relative Aperture 1 : 1.4
Aperture Range F1.4 – 22
Angle of View
(Horizontal
× Vertical)		 1/3″ 11.0° × 8.2°
1/2″ 14.6° × 11.0°
2/3″ 20.0° × 15.0°
Image Size 8.8mm×6.6mm(Φ11mm)
Minimum Object Distance 0.2m (From Front Vertex)
Resolution 3.45μm
Optical Distortion -0.07% (at near) , 0.21% (at far)
TV Distortion 0.02% (at near) , 0.11% (at far)
Back Focus 14.01mm (in Air)
Flange back 17.526mm
Operation Focus:Manual , Iris:Manual
Operating Temprature -10℃ – +50℃
Mount C-Mount
Filter Size 49mmP0.75

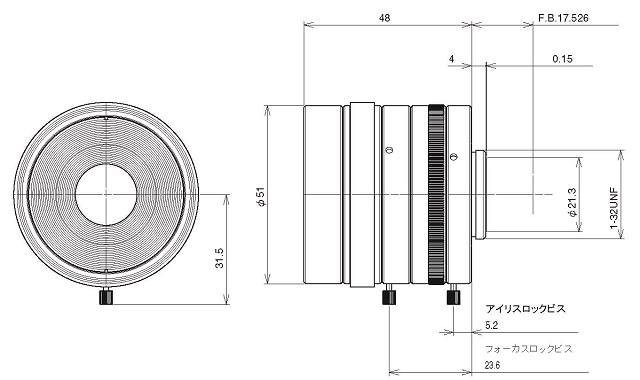

Size Φ51 × 48mm
Weight approx.190g
