1/2.8″ CMOS Compact Full HD USB2.0 Camera
WAT-01U2
WATEC CO.,LTD.
|
|
|
|
Directly import the captured image to your PC and compact design specializes
in the embedded application
|
 |
■Compact design (32×32mm) with CS lens mount and light weight
■1/2.8-inch megapixel CMOS image sensor achieves the effective pixels 1984(H)×1225(V)
■The internal ISP (Image Signal Processor) ensures optimal image quality depending
on the usage environment
■USB Video Class & USB Bus Power (plug & play)
■Simple viewer software with features to change the camera settings and capture images.
|
| Specifications |
| Model Number |
WAT-01U2 |
| Pick-up element |
1/2.8 inch CMOS image sensor |
| Number of effective pixels |
1984(H) × 1105(V) |
| Unit cell size |
2.8μm × 2.8μm |
| Imaging system |
RGB primary color bayer arrangement mosaic filters on chip |
| Synchronizing system |
Internal |
| Scanning system |
Progressive |
| Output size |
160×120, 176×144, 320×240, 640×480, 1280×720, 1280×800, 1280×1024, 1920×1080 |
| Max. frame rate |
30 fps |
| Video compression |
MJPG, YUY2 |
| Video output |
USB Video Class (Compatible) |
| Resolution (H) |
More than 680TVL (Center) |
| Minimum illumination |
0.2 lx F1.2 (AGC ON=42dB, Shutter=OFF) |
| 0.1 lx F1.2 (AGC ON=42dB, Shutter=1/15 sec.) |
| S/N |
– |
| Function settings |
Camera Viewer |
| AE mode |
Fixed |
1/15 sec. |
| 1/15, 1/30, 1/60, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000 sec. |
| EI |
1/30 - 1/8000 sec. |
| 1/15 - 1/8000 sec. |
| White balance |
ATW, MWB |
| AGC |
ON |
0 - 42dB |
| OFF |
– |
| MGC |
0 - 24dB |
| Gamma characteristics |
γ≒ USER (Level adjustable) |
| Noise reduction |
– |
| Wide dynamic range |
– |
| Lens iris |
– |
| Back light compensation |
BLC |
| White blemish correction |
– |
| Sharpness |
Level adjustable |
| Defog |
– |
| Digital zoom |
– |
| Privacy mask |
– |
| Mirror image |
– |
| Freeze |
– |
| Motion detection |
– |
| Neg.image |
– |
| Interface |
USB (High speed), 2P connector (Snap shot) |
| Power supply |
USB +5V |
| Power consumption |
0.6W (120mA) |
| Operating temperature |
-10℃ – +50℃ |
| Storage temperature |
-30℃ – +70℃ |
| Operating / Storage humidity |
95% RH or less (Without condensation) |
| Lens mount |
CS mount (Back focus adjustable) |
| Cable length |
Shorter than 3.0m recommended |
| Weight |
Approx. 35g |
| Accessories |
Hex wrench, Camera bracket, EX cable, USB cable |
| Min.System Requirements |
CPU |
800MHz or faster |
| RAM |
512MB or larger |
| Others |
USB2.0 Port |
| Recooended System Specifications |
CPU |
Intel® Core TM i Series |
| RAM |
2GB or larger |
| Others |
USB2.0 Port, 1920×1080 or better resolution display |
| Operation Confirmed OS |
Windows XP 32bit/64bit (SP2, 3), Windows Vista 32bit/64bit, Windows 7 32bit/64bit, |
| Windows 8 32bit/64bit, Windows 8.1 32bit/64bit, Windows 10 32bit/64bit |
|

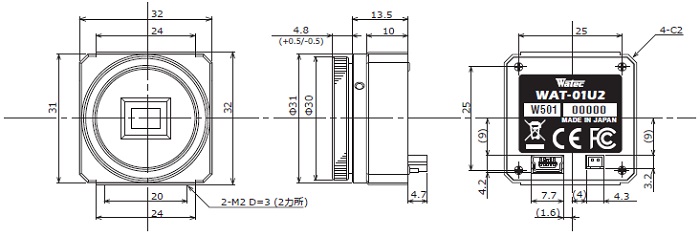

Dimensional outline drawing
|
|
|
|
■Max. frame rate
|
| Output Size |
Aspect Ratio |
Pixels |
Video Compression |
Frame Rate |
1920 × 1080
(HD 1080p) |
16 : 9 |
2,073,600 |
YUY2 |
5fps |
| MJPG |
30fps |
1280 × 1024
(SXGA) |
5 : 4 |
1,310,720 |
YUY2 |
7.5fps |
| MJPG |
30fps |
1280 × 800
(WXGA) |
16 : 10 |
1,024,000 |
YUY2 |
10fps |
| MJPG |
30fps |
1280 × 720
(HD 720p) |
16 : 9 |
921,600 |
YUY2 |
10fps |
| MJPG |
30fps |
640 × 480
(VGA) |
4 : 3 |
307,200 |
YUY2 |
30fps |
| MJPG |
30fps |
320 × 240
(Quarter-VGA) |
4 : 3 |
76,800 |
YUY2 |
30fps |
| MJPG |
30fps |
176 × 144
(Quarter-CIF) |
11 : 9 |
25,344 |
YUY2 |
30fps |
| MJPG |
30fps |
160 × 120
(Quarter-Quarter-VGA) |
4 : 3 |
19,200 |
YUY2 |
30fps |
| MJPG |
30fps |
|
|
|
|
■Options
|
| Model Number |
Product name |
Description |
| 30CMA-R |
C-mount Adaptor |
This lens mount adaptor is used to convert a CS-mount to a C-mount. |
| H003 |
Holder |
USB cable fixer for WAT-01U2. |
|
|
