| SPECIFICATIONS |
| Model No. |
G6X1VZ16100M |
| Focal Length |
16 – 100mm |
| Maximum Relative Aperture |
1 : 1.9 |
| Iris |
F1.9 – Close |
| Angle of View |
1/3″ |
17.2° × 12.8° – 2.8° × 3.0° |
| 1/2″ |
22.7° × 17.2° – 3.7° × 2.8° |
| 2/3″ |
31.2° × 23.4° – 5.0° × 3.8° |
| 1″ |
43.6° × 33.4° – 7.° × 5.5° |
| – |
– |
| Image Size |
12.8mm × 9.6mm(Φ16mm) |
| Minimum Object Distance |
1.1m(From Front Vertex)
Close-up photography as far as Object Distance 5cm is possible by Wide Macro function.
(Close-up photography is available only at Wide end.)
|
| Field of View(at M.O.V) |
f=16mm:81.2 × 60.9cm(Macro:7.2 × 5.4cm)
f=100mm:13.6 × 10.2cm |
| Optical Back Focal Distance |
18.14mm(In Air) |
| Flange Back |
17.526mm |
| Operation |
Focus:Manual , Zoom:Manual , Iris:Manual |
| Operating Temperature |
-10℃ – 50℃ |
| Mount |
C-Mount |
| Filter Size |
58mmP0.75 |

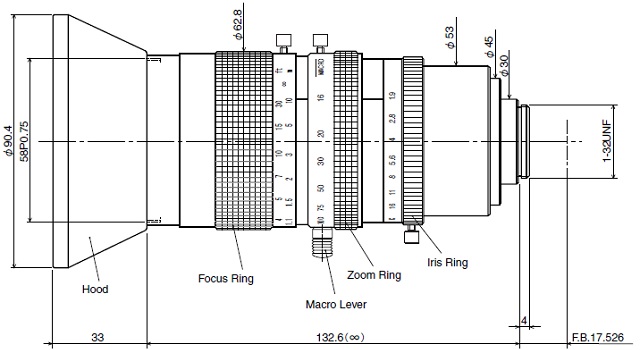

| Size |
Φ62.8 × 136.6mm/Φ90.4 × 169.6mm(Attached Hood) |
| Weight |
Approx.620g/Approx.��660g(Attached Hood) |
