| SPECIFICATIONS |
| Model No. |
HZ848M |
| Focal Length |
8 – 48mm |
| Maximum Relative Aperture |
1 : 1.0 |
| Iris |
F1.0 – Close |
| Angle of View |
1/3″ |
32.2° × 24.1°(at f=8mm) – 5.5° × 4.2°(at f=48mm) |
| 1/2″ |
43.6° × 33.4°(at f=8mm) – 7.7° × 5.7°(at f=48mm) |
| – |
– |
| Image Size |
6.4mm × 4.8mm(Φ8mm) |
| Minimum Object Distance |
1.0m(From Front Vertex)
Close-up photography as far as Object Distance 0.5m is possible by
S.N.(Service Near)function of Focus.
(Partial ecliipse may occur during zooming in the S.N. range with using 1/2″ camera.)
|
| Field of View(at M.O.V) |
f=8mm : 74.3cm×54.9cm (S.N:37.2cm×27.5cm)
f=48mm : 12.3cm×93.0cm (S.N:6.2cm×4.7cm) |
| Optical Back Focal Distance |
14.56mm(in Air) |
| Flange Back |
17.526mm |
| Operation |
Focus:Manual , Zoom:Manual , Iris:Manual |
| Operating Temperature |
-10℃ – 50℃ |
| Mount |
C-Mount |
| Filter Size |
46mmP0.75 |

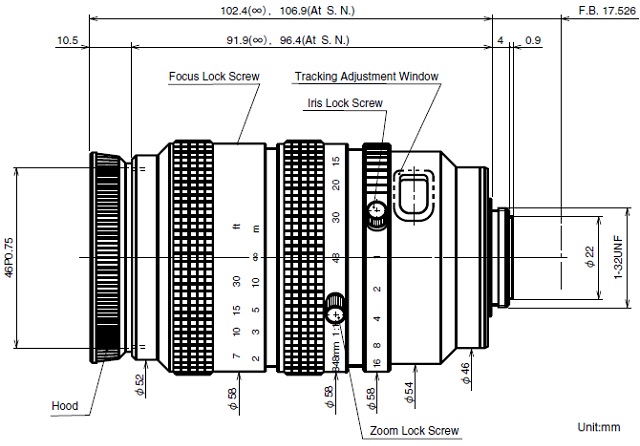

| Size |
Φ58 × 102.4mm |
| Weight |
approx.395g |
