Macro Zoom Lens 0.47x - 3.0x

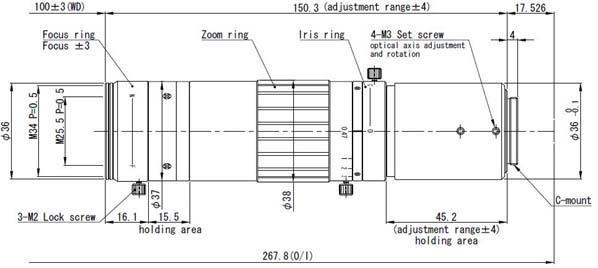

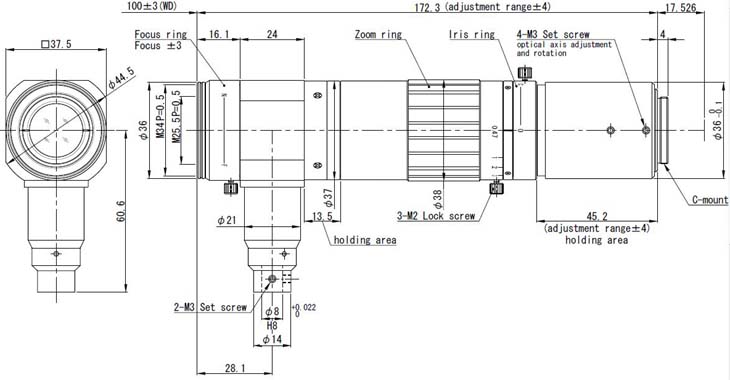

VSZ-0530/VSZ-0530CO
VSZ-0530/VSZ-0530CO were designed to be compact in size and have a long WD. Without changing the WD this series has magnification ranges from 0.47x - 3.0x which is great for variable magnification needing applications.

■1/2″ - 1/1.8″ sensor support
■0.47x - 3.0x Mag. ranges
■100mm WD
■Variable zoom
Specification
Model No. VSZ-0530 VSZ-0530CO
Magnification Range 0.47×–3.0×
Zoom Ratio 6.5×
Optical Magnification 0.47× 3.0× 0.47× 3.0×
Effective FNO. 6.9 19.8 6.9 19.8
1/2″Monitor Magnification 22.6× 146.7× 22.6× 146.7×
Field of View(H×V) 13.6×10.2mm 2.1×1.6mm 13.6×10.2mm 2.1×1.6mm
1/3″Monitor Magnification 30.2× 192.5× 30.2× 192.5×
Field of View(H×V) 10.2×7.7mm 1.6×1.2mm 10.2×7.7mm 1.6×1.2mm
NA 0.034 0.078 0.034 0.078
Field Depth 2.5 0.2 2.5 0.5
TV Distortion -0.09% 0.11% -0.09% 0.11%
W.D. 100
Object Distance(O/I) 267.8mm 289.8�o
Imager Size 1/1.8″ – 1/3″
Mount C-Mount
Flange back 17.526
Weight approx.240g approx.320g
External Dimensions Φ38(max)×150.3mm Φ44.5(max)×172.3mm
Illumination System – Co-axial
Front Converter Lenses (Optional Accessory)
Model No. VSZ-03X VSZ-04X VSZ-05X VSZ-07
Magnification 0.3× 0.4× 0.5× 0.7×
Magnification Range 0.141–0.9× 0.188–1.2× 0.235–1.5× 0.329–2.1×
W.D. 337.6mm 250.6mm 201.0mm 140.0

VSZ-0530

VSZ-0530CO

VSZ-03X
VSZ-04X
VSZ-05X
VSZ-07X
