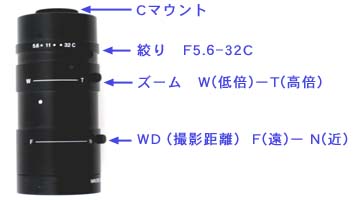

Macro Zoom Lens
1/2″ Max. magnification 0.084–0.84× F5.6–32C
MLH-10X
Wide zoom range for general inspection,documentation,and visual aid applications.

■1/2″ - 1/4″ sensor support
■0.022×–0.84× Mag. ranges
■Zoom Ratio 10×
■Variable WD 0.15m–0.45m
Specification
Max. Magnification 0.084×–0.84×
Max. Aperture Ratio 1 : 5.6
Iris F5.6–F32C
W.D 0.15m–0.45m
Back Focal Length 23.29mm
Flange Back Length 17.526mm
Mount C-Mount
Filter Size M46P=0.75mm

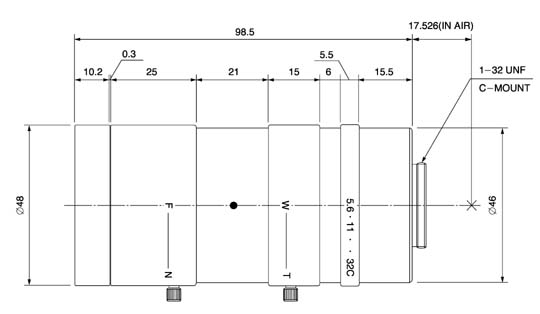

Dimensions Φ48mm×98.5mm
Weight 260g
Field of View(H mm×V mm)
WD(mm) Object Size 1/2″ 1/3″ 1/4″
WD=150 Magnification 0.084x–0.84x
Field of View(mm) 76.2×57.1–7.6×5.7 57.1×42.9–5.7×3.1 42.9×32.1–4.3×3.2
WD=200 Magnification 0.06x–0.60x
Field of View(mm) 103.7×80.0–10.7×8.0 80.0×60.0–8.0×6.0 60.0×45.0–6.0×4.5
WD=250 Magnification 0.045x–0.45x
Field of View(mm) 142.2×106.7–14.2×10.7 106.7×80.0–10.7×8.0 80.0×60.0–8.0×6.0
WD=300 Magnification 0.036x–0.36x
Field of View(mm) 177.8×133.3–17.8×13.3 133.3×100.0–13.3×10.0 100.0×75.0–10.0×7.5
WD=350 Magnification 0.03x–0.30x
Field of View(mm) 213.3×160.0–21.3×16.0 160.0×120.0–16.0×12.0 120.0×90.0–12.0×9.0
WD=400 Magnification 0.025x–0.25x
Field of View(mm) 256.0×192.0–25.6×19.2 192.0×144.0–19.2×14.4 144.0×108.0–14.4×10.8
WD=450 Magnification 0.022x–0.22x
Field of View(mm) 290.9×218.2–29.1×21.8 218.2×163.6–21.8×16.4 163.6×122.7–16.4×12.3
Angle of View Diagonal 21.6°–4.5° 17.0°–3.3° 13.0°–2.5°
Horizontal 18.0°–3.6° 13.8°–2.7° 10.6°–2.0°
Vertical 13.8°–2.7° 10.6°–2.0° 8.0°–1.5°
