Standard Stand B Type XYZ axis (Iron Base)
FCKS-B300I-XYZ/FCKS-B450I-XYZ
|
| Standard Stand XYZ axis Type for Microscope and Camera,Multi-purpose |
|
|
| |
|
Specifications |
| Post |
Length |
300mm / 450mm |
| Diameter |
Φ22 |

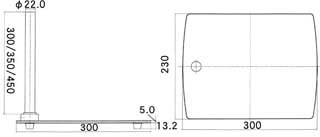

| Base |
Dimensions |
W230mm×D300mm×H18.2mm |
| Material |
Aluminum alloyaxis |
| Base |
Dimensions |
W230mm×D300mm×H18.2mm |
| Material |
Aluminum alloyaxis |
| Focusing Mount |
Transfer Mechanism |
Rack and Pinion |
| Travel (X axis) |
Left 19.5mm , Right 16.5mm |
| Travel (Y axis) |
Forward 36.0mm |
| Travel (Z axis) |
Upward 36.6mm , Dwnward 1.0mm |
| Remarks |
Fall prevention mechanism |
|
|
|
|
|
|
|
