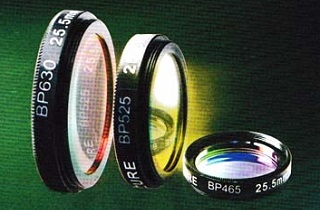

マシンビジョン対応バンドパスフィルター
Bandpass Filters for Machine Vision
AZURE Photonics
|
|
|
 |
バンドパスフィルターとは、必要な波長範囲だけを透過、それ以外の波長を遮断する光学フィルターです。
可視域〜近赤外域で、23種類の波長帯域を用意致しました。
フィルター枠は、M22.5P0.5からM105P1.0まで24種類とCマウントサイズを用意しており、各レンズメーカー製メガピクセルレンズへ対応しております。
ご要望に応じてカスタムコーティングも設計から承ります。
|
|
|
|
|
|
|

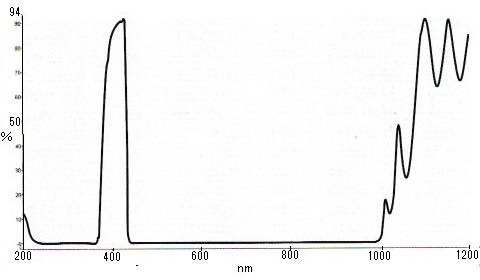

■ AZURE-BP405
|
FHHM：50nm±5nm 、 Blocking：> OD3
|
|
| Wavelength (mm) |
Transmission (％) |
| 380 | 40.528018 |
| 390 | 71.471782 |
| 400 | 83.941841 |
| 410 | 88.84847 |
| 420 | 90.65803 |
| 430 | 88.74733 |
| 440 | 0.37429 |
| 450 | 0.048333 |
| 460 | 0.062992 |
| 470 | 0.034979 |
| 480 | 0.004744 |
| 490 | 0.010482 |
| 500 | 0.039704 |
|
|

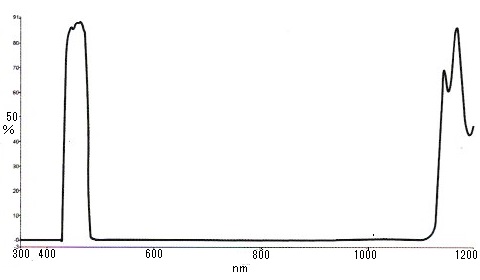

■ AZURE-BP450
|
FHHM：40nm±5nm 、 Blocking：> OD3
|
|
| Wavelength (mm) |
Transmission (％) |
| 400 | 0.006605 |
| 410 | 0.001364 |
| 420 | 0.002979 |
| 430 | 11.858341 |
| 440 | 83.992337 |
| 450 | 86.559814 |
| 460 | 88.19208 |
| 470 | 84.028294 |
| 480 | 5.875714 |
| 490 | 0.255073 |
| 500 | 0.2608 |
| 510 | 0.21573 |
| 520 | 0.043362 |
|
|

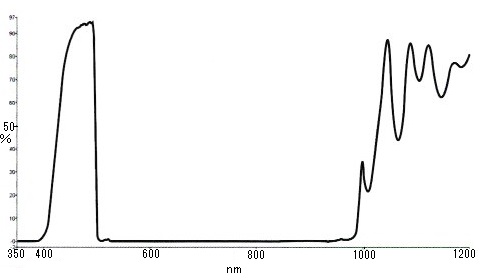

■ AZURE-BP465
|
FHHM：60nm±5nm 、 Blocking：> OD3
|
|
| Wavelength (mm) |
Transmission (％) |
| 400 | 2.296971 |
| 410 | 10.076601 |
| 420 | 31.416935 |
| 430 | 58.800121 |
| 440 | 77.825796 |
| 450 | 86.892778 |
| 460 | 91.501147 |
| 470 | 93.316664 |
| 480 | 94.470596 |
| 490 | 94.263359 |
| 500 | 7.844236 |
| 510 | 0.21573 |
| 520 | 0.043362 |
|
|

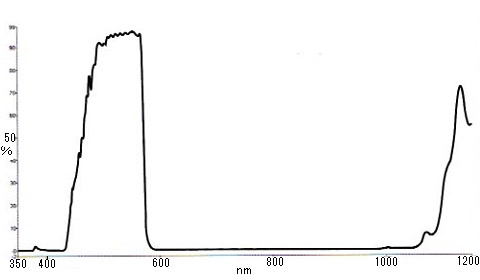

■ AZURE-BP500
|
FHHM：100nm±5nm 、 Blocking：> OD3
|
|
| Wavelength (mm) |
Transmission (％) |
| 430 | 0.095557 |
| 440 | 11.638552 |
| 450 | 30.418384 |
| 460 | 41.439907 |
| 470 | 61.28433 |
| 480 | 71.118977 |
| 490 | 89.408415 |
| 500 | 90.784587 |
| 510 | 94.391792 |
| 520 | 94.817941 |
| 530 | 95.978216 |
| 540 | 96.421099 |
| 550 | 96.703153 |
| 560 | 95.44094 |
| 570 | 71.841016 |
| 580 | 2.890617 |
| 590 | 0.519274 |
| 600 | 0.24251 |
|
|

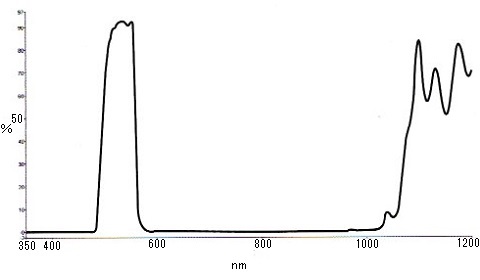

■ AZURE-BP525
|
FHHM：60nm±5nm 、 Blocking：> OD3
|
|
| Wavelength (mm) |
Transmission (％) |
| 470 | 0.007514 |
| 480 | 0.469418 |
| 490 | 18.089949 |
| 500 | 63.200754 |
| 510 | 83.567213 |
| 520 | 89.574021 |
| 530 | 92.491877 |
| 540 | 91.923919 |
| 550 | 92.055128 |
| 560 | 37.055128 |
| 570 | 2.351212 |
| 580 | 0.473759 |
| 590 | 0.309284 |
| 600 | 0.075675 |
|
|

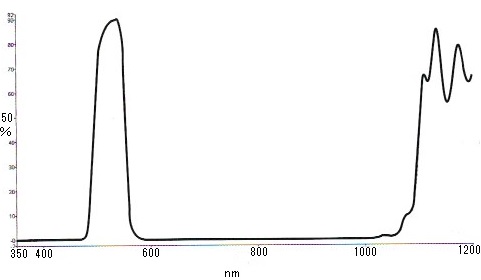

■ AZURE-BP530
|
FHHM：60nm±5nm 、 Blocking：> OD3
|
|
| Wavelength (mm) |
Transmission (％) |
| 460 | 0.082394 |
| 470 | 0.247704 |
| 480 | 2.650963 |
| 490 | 26.228318 |
| 500 | 65.012858 |
| 510 | 81.992802 |
| 520 | 87.464422 |
| 530 | 89.523931 |
| 540 | 89.539778 |
| 550 | 72.39335 |
| 560 | 13.157397 |
| 570 | 2.223749 |
| 580 | 0.661119 |
| 590 | 0.121197 |
| 600 | 0.013738 |
|
|

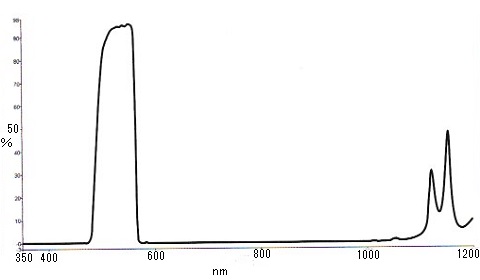

■ AZURE-BP535
|
FHHM：60nm±5nm 、 Blocking：> OD3
|
|
| Wavelength (mm) |
Transmission (％) |
| 470 | 0.00285 |
| 480 | 4.022512 |
| 490 | 42.623855 |
| 500 | 76.727053 |
| 510 | 88.64723 |
| 520 | 93.342459 |
| 530 | 94.752306 |
| 540 | 95.2178 |
| 550 | 95.653514 |
| 560 | 92.68967 |
| 570 | 0.781957 |
| 580 | 0.051268 |
|
|

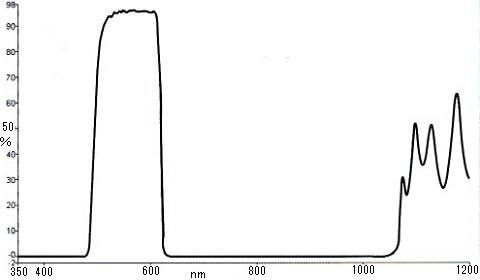

■ AZURE-BP560
|
FHHM：100nm±5nm 、 Blocking：> OD3
|
|
| Wavelength (mm) |
Transmission (％) |
| 470 | 0.007773 |
| 480 | 0.622478 |
| 490 | 27.41508 |
| 500 | 73.171352 |
| 510 | 89.221299 |
| 520 | 93.608428 |
| 530 | 94.959136 |
| 540 | 95.581121 |
| 550 | 95.65853 |
| 560 | 95.849294 |
| 570 | 95.95207 |
| 580 | 95.748985 |
| 590 | 95.656501 |
| 600 | 95.277635 |
| 610 | 94.3014 |
| 620 | 26.184344 |
| 630 | 0.292566 |
| 640 | 0.085578 |
|
|

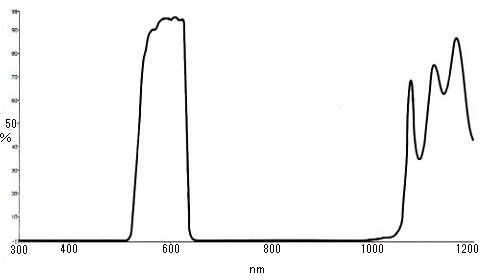

■ AZURE-BP590
|
FHHM：60nm±5nm 、 Blocking：> OD3
|
|
| Wavelength (mm) |
Transmission (％) |
| 500 | 0.002076 |
| 510 | 0.032152 |
| 520 | 2.289349 |
| 530 | 23.771933 |
| 540 | 59.74054 |
| 550 | 81.607749 |
| 560 | 89.767694 |
| 570 | 90.705898 |
| 580 | 94.449584 |
| 590 | 95.120206 |
| 600 | 94.64825 |
| 610 | 95.514752 |
| 620 | 94.531293 |
| 630 | 56.047169 |
| 640 | 1.499888 |
| 650 | 0.120129 |
| 660 | 0.028891 |
|
|

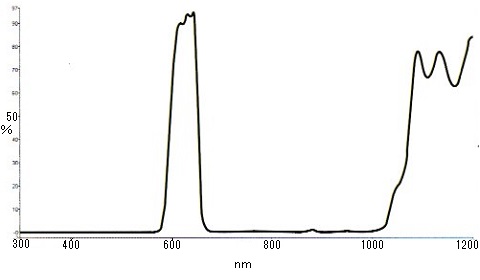

■ AZURE-BP625
|
FHHM：40nm±5nm 、 Blocking：> OD3
|
|
| Wavelength (mm) |
Transmission (％) |
| 560 | 0.040726 |
| 570 | 0.178773 |
| 580 | 1.837011 |
| 590 | 16.677582 |
| 600 | 53.93057 |
| 610 | 81.894194 |
| 620 | 89.724222 |
| 630 | 92.649364 |
| 640 | 92.779141 |
| 650 | 79.33175 |
| 660 | 12.120886 |
| 670 | 1.258609 |
| 680 | 0.246574 |
| 690 | 0.097273 |
|
|

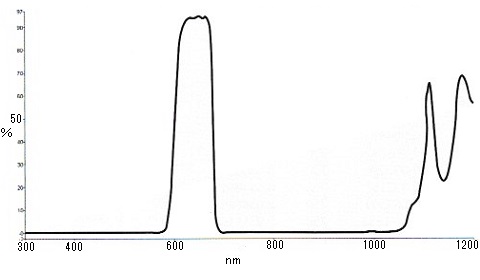

■ AZURE-BP635
|
FHHM：60nm±5nm 、 Blocking：> OD3
|
|
| Wavelength (mm) |
Transmission (％) |
| 560 | 0.07714 |
| 570 | 0.179934 |
| 580 | 1.142801 |
| 590 | 12.111734 |
| 600 | 51.879655 |
| 610 | 81.832447 |
| 620 | 91.362965 |
| 630 | 93.864832 |
| 640 | 93.941953 |
| 650 | 94.479043 |
| 660 | 94.243699 |
| 670 | 90.992314 |
| 680 | 18.652971 |
| 690 | 0.672145 |
| 700 | 0.082222 |
|
|

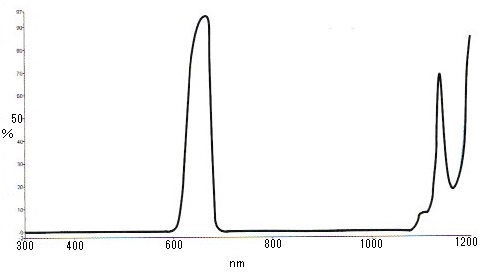

■ AZURE-BP650
|
FHHM：40nm±5nm 、 Blocking：> OD3
|
|
| Wavelength (mm) |
Transmission (％) |
| 580 | 0.04684 |
| 590 | 0.119565 |
| 600 | 0.733467 |
| 610 | 4.822767 |
| 620 | 21.63505 |
| 630 | 54.915684 |
| 640 | 80.249723 |
| 650 | 90.454502 |
| 660 | 93.985917 |
| 670 | 94.185198 |
| 680 | 23.284859 |
| 690 | 1.113158 |
| 700 | 0.145137 |
| 710 | 0.0372 |
| 720 | 0.020221 |
|
|

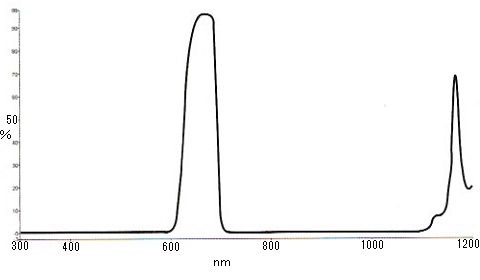

■ AZURE-BP660
|
FHHM：60nm±5nm 、 Blocking：> OD3
|
|
| Wavelength (mm) |
Transmission (％) |
| 590 | 0.090664 |
| 600 | 0.687131 |
| 610 | 4.991063 |
| 620 | 22.938244 |
| 630 | 56.71376 |
| 640 | 81.284169 |
| 650 | 91.35592 |
| 660 | 94.617493 |
| 670 | 95.543627 |
| 680 | 95.402855 |
| 690 | 75.725218 |
| 700 | 6.639838 |
| 710 | 0.498652 |
| 720 | 0.089187 |
|
|

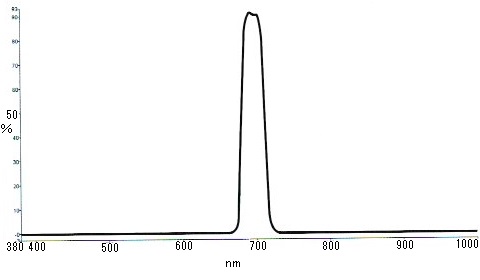

■ AZURE-BP695
|
FHHM：30nm±5nm 、 Blocking：> OD3
|
|
| Wavelength (mm) |
Transmission (％) |
| 650 | 0.056923 |
| 660 | 0.078889 |
| 670 | 0.648023 |
| 680 | 43.580111 |
| 690 | 90.437874 |
| 700 | 90.2908 |
| 710 | 65.791792 |
| 720 | 3.555918 |
| 730 | 0.198266 |
| 740 | 0.04063 |
| 750 | 0.026034 |
| 760 | 0.045357 |
|
|

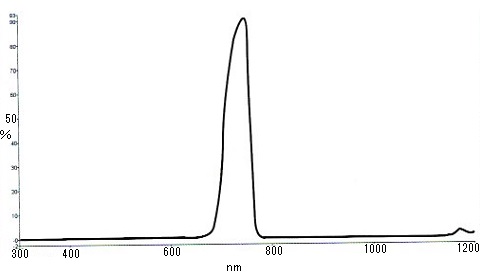

■ AZURE-BP735
|
FHHM：40nm±5nm 、 Blocking：> OD3
|
|
| Wavelength (mm) |
Transmission (％) |
| 650 | 0.32787 |
| 660 | 0.575137 |
| 670 | 1.174539 |
| 680 | 3.112861 |
| 690 | 10.338943 |
| 700 | 30.28409 |
| 710 | 56.356681 |
| 720 | 74.475838 |
| 730 | 83.641084 |
| 740 | 89.091497 |
| 750 | 89.432784 |
| 760 | 36.499725 |
| 770 | 2.269601 |
| 780 | 0.20588 |
| 790 | 0.034834 |
|
|

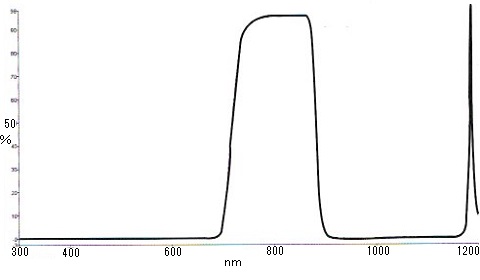

■ AZURE-BP800
|
FHHM：100nm±5nm 、 Blocking：> OD3
|
|
| Wavelength (mm) |
Transmission (％) |
| 690 | 0.896486 |
| 700 | 7.016021 |
| 710 | 28.518624 |
| 720 | 55.129864 |
| 730 | 76.102698 |
| 740 | 87.486833 |
| 750 | 91.533792 |
| 760 | 93.359852 |
| 770 | 94.362016 |
| 780 | 94.932978 |
| 790 | 95.291051 |
| 800 | 95.51852 |
| 810 | 95.471555 |
| 820 | 95.528281 |
| 830 | 95.663274 |
| 840 | 95.782063 |
| 850 | 95.736709 |
| 860 | 95.792683 |
| 870 | 93.396359 |
| 880 | 61.760428 |
| 890 | 13.703807 |
| 900 | 2.134709 |
| 910 | 0.594386 |
|
|

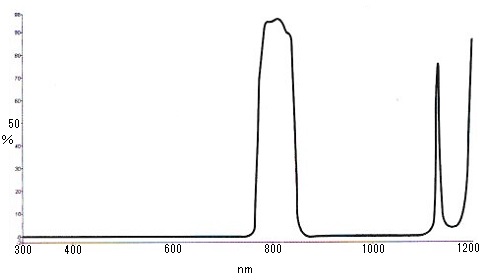

■ AZURE-BP808
|
FHHM：60nm±5nm 、 Blocking：> OD3
|
|
| Wavelength (mm) |
Transmission (％) |
| 750 | 0.195001 |
| 760 | 1.970507 |
| 770 | 37.494369 |
| 780 | 83.839639 |
| 790 | 94.5133 |
| 800 | 94.522592 |
| 810 | 95.51252 |
| 820 | 94.034103 |
| 830 | 89.517253 |
| 840 | 76.019177 |
| 850 | 11.454803 |
| 860 | 1.605084 |
| 870 | 0.218673 |
| 880 | 0.011216 |
|
|

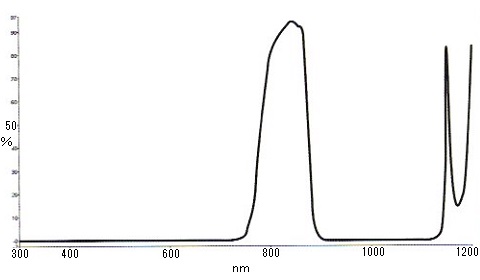

■ AZURE-BP830
|
FHHM：100nm±5nm 、 Blocking：> OD3
|
|
| Wavelength (mm) |
Transmission (％) |
| 740 | 0.668523 |
| 750 | 2.962192 |
| 760 | 10.131374 |
| 770 | 25.393756 |
| 780 | 46.719822 |
| 790 | 66.457198 |
| 800 | 79.311176 |
| 810 | 85.560694 |
| 820 | 88.937106 |
| 830 | 91.856404 |
| 840 | 94.07984 |
| 850 | 93.457447 |
| 860 | 92.0988 |
| 870 | 79.264881 |
| 880 | 27.794187 |
| 890 | 4.205018 |
| 900 | 0.778229 |
| 910 | 0.227463 |
|
|

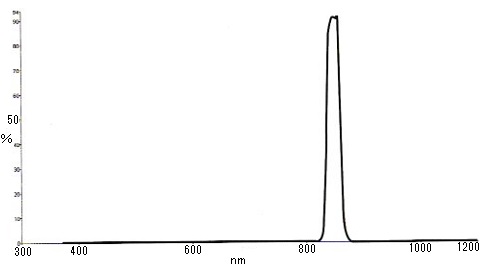

■ AZURE-BP850
|
FHHM：20nm±5nm 、 Blocking：> OD3
|
|
| Wavelength (mm) |
Transmission (％) |
| 800 | 0.056448 |
| 810 | 0.074951 |
| 820 | 0.338034 |
| 830 | 6.617092 |
| 840 | 84.078241 |
| 850 | 90.94369 |
| 860 | 46.277572 |
| 870 | 2.750757 |
| 880 | 0.208318 |
| 890 | 0.106823 |
| 900 | 0.033797 |
| 910 | 0.035373 |
|
|

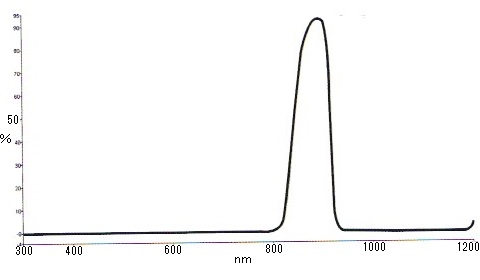

■ AZURE-BP880
|
FHHM：60nm±5nm 、 Blocking：> OD3
|
|
| Wavelength (mm) |
Transmission (％) |
| 800 | 0.35953 |
| 810 | 1.417441 |
| 820 | 5.45663 |
| 830 | 17.484282 |
| 840 | 40.420218 |
| 850 | 64.548722 |
| 860 | 79.808045 |
| 870 | 87.864893 |
| 880 | 91.509597 |
| 890 | 92.985113 |
| 900 | 91.918714 |
| 910 | 73.746955 |
| 920 | 18.330215 |
| 930 | 2.67532 |
| 940 | 0.54176 |
|
|

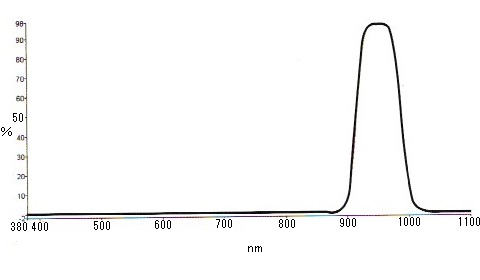

■ AZURE-BP950
|
FHHM：60nm±5nm 、 Blocking：> OD3
|
|
| Wavelength (mm) |
Transmission (％) |
| 870 | 0.352936 |
| 880 | 0.714062 |
| 890 | 1.955999 |
| 900 | 7.600416 |
| 910 | 30.006015 |
| 920 | 67.681739 |
| 930 | 91.157587 |
| 940 | 96.290806 |
| 950 | 95.556337 |
| 960 | 96.344735 |
| 970 | 93.893515 |
| 980 | 77.45219 |
| 990 | 42.609283 |
| 1000 | 14.002763 |
| 1010 | 3.59866 |
| 1020 | 1.114425 |
| 1030 | 0.428308 |
|
|

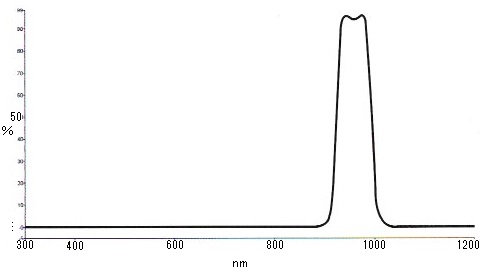

■ AZURE-BP960
|
FHHM：60nm±5nm 、 Blocking：> OD3
|
|
| Wavelength (mm) |
Transmission (％) |
| 890 | 0.337177 |
| 900 | 1.248758 |
| 910 | 5.251532 |
| 920 | 27.443048 |
| 930 | 81.490211 |
| 940 | 95.488284 |
| 950 | 95.28484 |
| 960 | 94.201271 |
| 970 | 95.617239 |
| 980 | 94.771391 |
| 990 | 69.344961 |
| 1000 | 21.064744 |
| 1010 | 4.941312 |
| 1020 | 1.420243 |
| 1030 | 0.59885 |
|
|

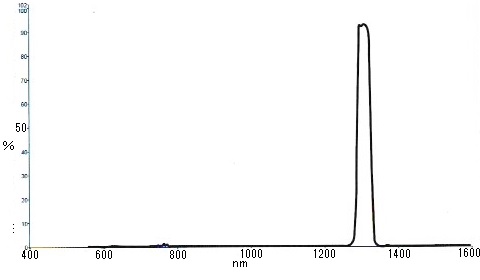

■ AZURE-BP1300
|
FHHM：20nm±5nm 、 Blocking：> OD3
|
|
| Wavelength (mm) |
Transmission (％) |
| 1250 | 0.015 |
| 1260 | 0.089 |
| 1270 | 0.651 |
| 1280 | 4.444 |
| 1290 | 74.742 |
| 1300 | 92.247 |
| 1310 | 92.665 |
| 1320 | 83.917 |
| 1330 | 10.251 |
| 1340 | 0.714 |
| 1350 | 0.037 |
| 1360 | 0.032 |
| 1370 | 0.454 |
| 1380 | 0.301 |
|
|
|
|
|
| ■ フィルター枠 |
|
|
枠サイズ
Thread Diameter Pitch(mm) |
外径
External |
開口
Aperture |
| C-Mount |
25.4mm |
19.5mm |
| M22.5×P0.5mm |
24.0mm |
18.5mm |
| M25.5×P0.5mm |
27.5mm |
21.0mm |
| M27.0×P0.5mm |
29.0mm |
23.0mm |
| M30.5×P0.5mm |
32.5mm |
26.5mm |
| M34.0×P0.5mm |
36.0mm |
30.0mm |
| M35.5×P0.5mm |
37.0mm |
31.5mm |
| M37.0×P0.75mm |
39.0mm |
33.0mm |
| M37.5×P0.5mm |
39.5mm |
33.5mm |
| M37.5×P0.5mm |
39.5mm |
33.5mm |
| M37.5×P0.5mm |
39.5mm |
33.5mm |
| M40.5×P0.5mm |
42.0mm |
36.0mm |
| M43.0×P0.75mm |
45.0mm |
39.5mm |
| M46.0×P0.75mm |
48.0mm |
41.5mm |
| M49.0×P0.75mm |
51.0mm |
44.5mm |
| M52.0×P0.75mm |
54.0mm |
47.5mm |
| M55.0×P0.75mm |
57.0mm |
50.5mm |
| M58.0×P0.75mm |
60.0mm |
53.5mm |
| M62.0×P0.75mm |
65.0mm |
57.5mm |
| M67.0×P0.75mm |
70.0mm |
63.2mm |
| M68.0×P0.75mm |
70.0mm |
63.2mm |
| M72.0×P0.75mm |
75.0mm |
67.7mm |
| M77.0×P0.75mm |
80.0mm |
63.0mm |
| M82.0×P0.75mm |
85.0mm |
78.8mm |
| M86.0×P0.75mm |
90.0mm |
80.0mm |
| M95.0×P1.0mm |
99.0mm |
90.0mm |
| M105.0×P1.0mm |
109.0mm |
100.0mm |
|
|
|
|
|
