Accessories
■ FF-CS-C CS-to-C-Mount Conversion Adapter



The CS to C Mount Adapter allows a CS mount CCTV camera to be used with a C mount lens

Model No. FF-CS-C
Material Aluminum(A5056)
Surface finishing Black alumite
Mount C-Mount(U1-32UN)
Size φ30(31)×9 mm
■ EX-20N Rear conversion lens to double the focal length.(for Megapixel Lenses)



2 times extender for Megapixel C-mount lenses to double the focal length. Please note that this will increase the F number, increase chromatic aberration and lower the optical performance of the lens.

Model No. EX-20N
Magnification 2倍
Mount C-Mount(U1-32UN)
Imager Size 1″
Size φ32×11mm
Weight 43g

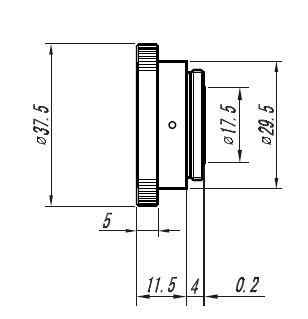

■ SV-2.0XNB Rear conversion lens to double the focal length.



2 times extender for C-mount lenses to double the focal length. Please note that this will increase the F number, increase chromatic aberration and lower the optical performance of the lens.

Model No. SV-2.0XNB
Magnification 2倍
Mount C-Mount(U1-32UN)
Imager Size 1″
Size φ37.5×11.5mm
Weight 49.5g
■ 2XHE Rear conversion lens to double the focal length.
2 times extender for C-mount lenses to double the focal length. Please note that this will increase the F number, increase chromatic aberration and lower the optical performance of the lens.

Model No. 2XHE
Magnification
Mount C-Mount(U1-32UN)
Imager Size 1/2″
Size φ48×8.8mm
Weight Approx.50g
■ EX TUBE EXTENTION TUBE
5 different length of tube (0.5/1/5/10/22mm) to adjust the focal point for the close-up application.

By adding EX Tube (Extension Tube) on Fixed ,Close-up photography is available.
Model No. Description
EXT-0.5 Extension Tube 0.5mm
EXT-1 Extension Tube 1mm
EXT-2 Extension Tube 2mm
EXT-5 Extension Tube 5mm
EXT-10 Extension Tube 10mm
EXT-15 Extension Tube 15mm
EXT-20 Extension Tube 20mm
EXT-40 Extension Tube 40mm
EX TUBE SET EXTENTION TUBE SET(0.5mm,1mm,5mm,10mm,22mm)
