SWIR Fixed Focal Lens for Short Wave Infrared Imaging
SWIR (Short Wave Infrared Imaging) Lenses , Imager Size 2/3″
JHF8M-5MP SWIR/JHF12M-5MP SWIR/JHF16M-5MP SWIR/JHF25M-5MP SWIR/JHF35M-5MP SWIR
SPACECOM
High transmission rate in the 700 nm – 1900 nm. (Short Wave InfraRed)

■Deliver high level image quality with VGA(642×512pixel) under short wavelength infrared(900–1700nm).
■In-house coating technique,maximum transmittance can reach up to 95%.
■Low distortion helps better performance in optical inspection.
■V isible light imaging.
■Iris m oving in c licks.

C-Mount / Flange back:17.526mm
Model No. Focal
Length
(f=)		 Aperture Range Angle of View
(Horizontal
 × Vertical)		 Resolution Minimum
Object
Distance (m)		 Operation
Iris		 Filter Size PDF
JHF8M-5MP SWIR 8mm 2.8–22 57.9°×45.0° 3.45μm 0.1m Manual M49P0.75
JHF12M-5MP SWIR 12mm 1.8–22 40.3°×30.8° 3.45μm 0.15m Manual M49P0.75
JHF16M-5MP SWIR 16mm 1.4–22 30.8°×23.3° 3.45μm 0.2m Manual M49P0.75
JHF25M-5MP SWIR 25mm 1.4–22 20.0°×15.0° 3.45μm 0.2m Manual M49P0.75
JHF35M-5MP SWIR 35mm 1.4–22 14.3°×10.8° 3.45μm 0.25m Manual M49P0.75

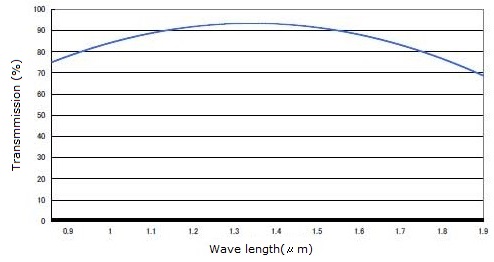

■ IR coating transmittance
