1/2.8″ Professional 3G/HD-SDI Camera(Full HD Camera)
WAT-2200 mk2
WATEC CO.,LTD.
|
|
|
 |
■1/2.8-inch BSI CMOS image sensor with high sensitivity
■Min. illumination 0.006 lx F1.2 (AGC HIGH=72dB, Shutter=OFF)
0.0004 lx F1.2 (AGC HIGH=72dB, Shutter=x15)
■Sixteenfold increase in sensitivity than the previous model
■Full HD 1080/60p resolution with 3G-SDI/HD-SDI interface and low latency
|
| Specifications |
| Model Number |
WAT-2200 mk2 |
| Pick-up element |
1/2.8 inch BSI CMOS image sensor |
| Number of effective pixels |
1945(H) × 1097(V) |
| Unit cell size |
2.9μm × 2.9μm |
| Imaging system |
RGB primary color bayer arrangement mosaic filters on chip |
| Synchronizing system |
Internal |
| Scanning system |
Progressive |
| Video output |
3G-SDI, HD-SDI Composite video:1.0 V(p-p) 75Ω (Unbalanced) |
| Output format |
1080/60p, 1080/59.94p, 1080/50p, 1080/60i, 1080/59.94i, 1080/50i, 1080/30p
1080/29.97p, 1080/25p, 1080/24p, 720/60p, 720/59.94p, 720/50p, NTSC, PAL |
| Resolution(H) |
More than 1000TVL (Center) |
| Minimum illumination |
0.006 lx F1.2 (AGC HIGH=72dB, Shutter=OFF)
0.0004 F1.2 (AGC HIGH=72dB, Shutter=x15) |
| S/N |
More than 55dB (AGC OFF=0dB, γ=1.0) |
| Function settings |
OSD : Remote controller， RS-232 (Pelco-D, Pelco-P),
Communication: RS-232 (Pelco-D, Pelco-P, Visca) |
| AE mode |
Fixed |
x2, x3, x4, x5, x6, x7, x8, x9, x10, x12, x15(frame) |
(Output Format: 60 / 59.94 / 30fps)
1/30, 1/60, 1/120, 1/180, 1/240, 1/300, 1/500, 1/1000, 1/2000, 1/5000, 1/10000 sec. |
(Output Format: 50 / 25 / 24fps)
1/25, 1/50, 1/100, 1/150, 1/200, 1/250, 1/500, 1/1000, 1/2000, 1/5000, 1/10000 sec. |
| EI |
(Output Format: 60 / 59.94 / 30fps)1/30 - 1/10000 sec.
(Output Format: 50 / 25 / 24fps)1/25 - 1/10000 sec.
x15 - 1/10000 sec. |
| White balance |
ATW, PWB, MWB |
| AGC |
ON |
0 - 32dB (LOW), 0 - 50dB (MID), 0 - 72dB (HIGH) |
| OFF |
0dB |
| MGC |
0 – 72dB(5dB Step) |
| Day/Night |
– |
| Gamma Characteristics |
γ ≒ USER (Level adjustable) |
| Noise reduction |
3DNR OFF/ON Level adjustable, 2DNR OFF/ON Level adjustable,
3D+2DNR ON Level adjustable |
| Wide dynamic range |
WDR OFF/ON Level adjustable, D-WDR OFF/ON Level adjustable |
| Lens iris |
DC |
| Back light compensation |
BLC, HSBLC |
| White blemish correction |
Up to 2046 pixels |
| Sharpness |
OFF/ON Level adjustable |
| Defog |
OFF/ON Level adjustable |
| Digital zoom |
ZOOM (x1.01 - x6.00), PAN/TILT |
| Privacy mask |
8 masks |
| Mirror image |
OFF, V-FLIP, H-FLIP, HV-FLIP |
| Freeze |
OFF/ON |
| Motion detection |
OFF/ON 4 areas arbitrarily configurable |
| Neg.image |
OFF/ON |
| Interface |
BNC (3G/HD-SDI), 2P connector (Composite video), Power in, Auto iris,
mini DIN8P (RC-02, RS-232) |
| Power supply |
DC+12V±10% |
| Power consumption |
2.4W(210mA) |
| Operating temperature |
-10℃-–+50℃ |
| Storage temperature |
-30℃–+70℃ |
| Operating / Storage humidity |
95%RH or Less (Without condensation) |
| Lens mount |
CS ｍount |
| Weight |
Approx. 130g |
| Accessories |
WPDC12-R (DC plug), 2P cable, Hex. wrench, Camera bracket, RC-02 (Remote control) |
|

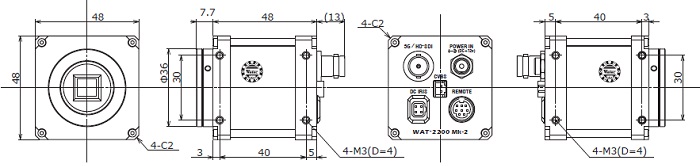

Dimensional outline drawing
|
|
|
|
■System Configuration
|
|
|
|
|
■Options
|
| Model |
Product name |
Specifications |
Safety standard |
| SWI12-12-N-P5 |
AC adaptor |
DC12V / 1.0A |
UL/cUL, PSE, FCC |
| SWI12-12-E-P5 |
AC adaptor |
DC12V / 1.0A |
CE |
| 30CMA-R |
C-mount adaptor |
Mount:U1-32UN |
– |
|
|
|
|
