1/3.2″ High Sensitivity Miniature Camera with Day/Night
WAT-1200CS
WATEC CO.,LTD.
High sensitivity min. illumination 0.002 lx F1.2 (AGC ON=54dB, Shutter=OFF)
Ultra-compact design only 26 x 26 x 30 mm
Wide dynamic range, ICR Mechaless Day/Night function
A dual-band pass filter allows the ability to view a scene with 850nm IR illumination at night
※Advanced setting available by OSD (On Screen Display) through an optional remote control
Specifications
Model Number WAT-1200CS(NTSC) WAT-1200CS(PAL)
Video standard NTSC PAL
Pick-up element 1/3.2 inch BSI CMOS image sensor
Number of effective pixels 1280(H) x 960(V) 1280(H) x 924(V)
Unit cell size 3.5μm(H) x 3.5μm(V)
Imaging system RGB+W array mosaic filters on chip
Synchronizing system Internal
Scanning system Progressive
Video output Composite: 1.0 V(p-p) 75Ω (Unbalanced)
Resolution (H) More than 750TVL (Center)
Minimum illumination 0.002 lx F1.2 (AGC ON=54dB, Shutter=OFF)
S/N More than 55dB (AGC OFF=0dB, γ=1.0)
Function settings OSD:Remote controller
AE mode Fixed 1/60 sec. 1/50 sec.
1/100, 1/120, 1/125、1/250, 1/500, 1/1000, 1/2000,
1/4000, 1/8000, 1/10000, 1/20000, 1/50000, 1/100000 sec.
EI 1/60 − 1/100000 sec. 1/50 − 1/100000 sec.
White balance ATW, AWB, PWB, MWB, PRESET (5100K, 6300K)
AGC ON:0−54dB、OFF:0dB
MGC 0−54dB (6dB step)
Day/Night ICR mechaless Auto, Manual
Gamma characteristics γ≒ 0.45
Video level Adjustable
Noise reduction 2DNR OFF/ON Level adjustable
Wide dynamic range WDR OFF/ON Level adjustable, D-WDR OFF/ON Level adjustable
Lens iris DC
Back light compensation BLC, HSBLC
White blemish correction
Sharpness Level adjustable
Defog OFF/ON Level adjustable
Digital zoom
Privacy mask 16 masks
Mirror image OFF, V-FLIP, H-FLIP, HV-FLIP
Freeze
Motion detection
Neg.image
Interface 4P connector (Composite Video, Power in), Auto iris, 2P connector (IR light ctl),
Remote conntrol (RC-01)
Power supply DC+5V - 12V
Power consumption 0.6W/120mA (DC+5V), 0.72W/60mA (DC+12V)
Operating / Storage temperature -10 −- +50℃ / -30 − +70℃
Operating / Storage humidity 95% RH or less (Without condensation)
Lens mount CS mount
Weight Approx. 22g
Accessories AIC-G (Iris plug), 4P cable, 2P cable, Hex. wrench, Camera bracket

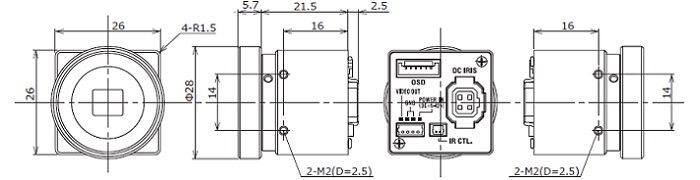

Dimensional outline drawing

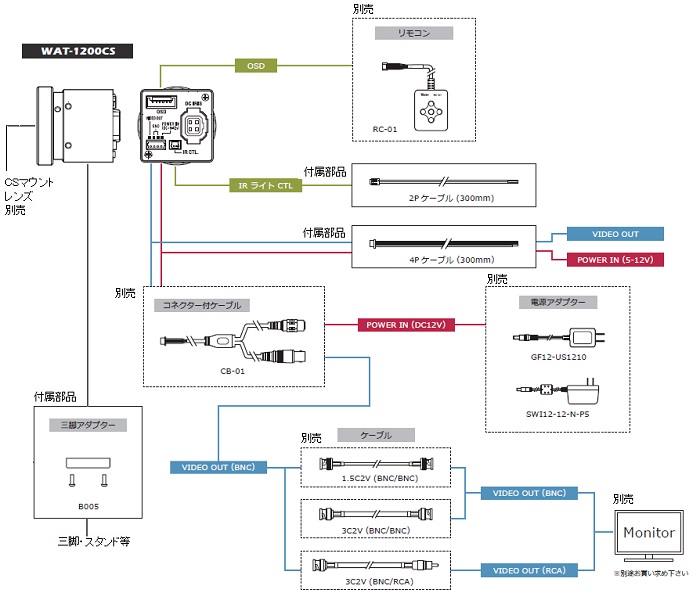

System Configuration
Options
Model Product name Specifications
SWI12-12-N-P5 AC adaptor DC12V 1.0A
RC-01 Remote control Remote controls for function setting of cameras. With the remote controls, camera functions can be adjusted easily as looking at the menu and images via OSD (On Screen Display).
30CMA-R 30CMA-R C-mount adaptor, Mount:U1-32UN
CB-01 Cable with connector Video out (BNC), Power in (DC Jack)
●Product Inquiry→
